Connect to a data source

Connect to a data source

  1. On the QuickSight page, click Datasets in the left navigation menu pane.

  2. On the upper right section of the screen, click new dataset

  3. Select Athena

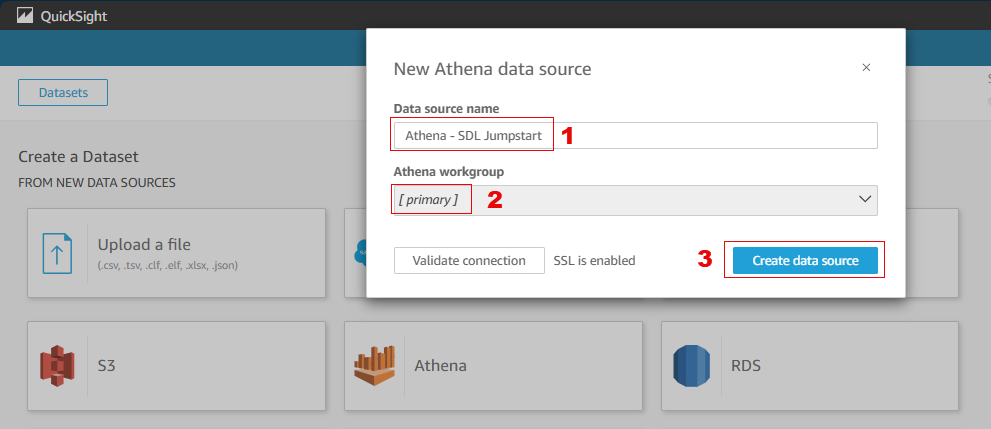

  4. In the New Athena data source window, specify the following:

    • Data source name – Athena - SDL Jumpstart
    • Athena workgroup – primary
    • Click Create Data Source

    Amazon Quicksight

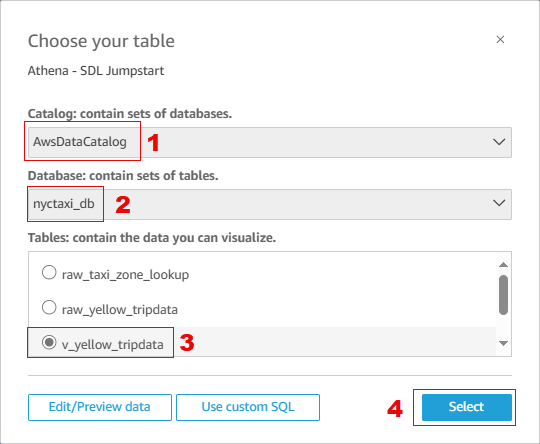

  5. In the Choose your table window, specify the following:

    • Catalog – AwsDataCatalog
    • Database – nyctaxi_db
    • Tables – v_yellow_tripdata
    • Click Select.

    Amazon Quicksight

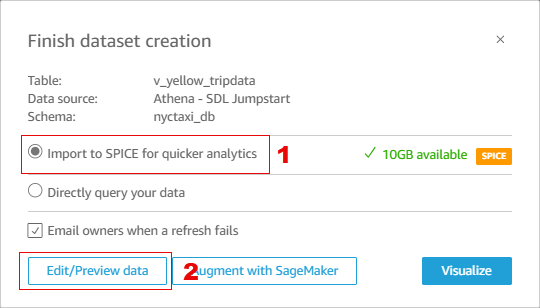

  6. In the Finish dataset creation window, specify the following:

    • Import to SPICE for quicker analytics
    • Click Edit/Preview data.

    Amazon Quicksight

SPICE stands for Super-fast, Parallel, In-memory Calculation Engine. It’s engineered to rapidly perform advanced calculations and serve data. SPICE capacity is shared by all the people using QuickSight in a single AWS Region.
